DECON-SHOWER DCS

Preis auf Anfrage

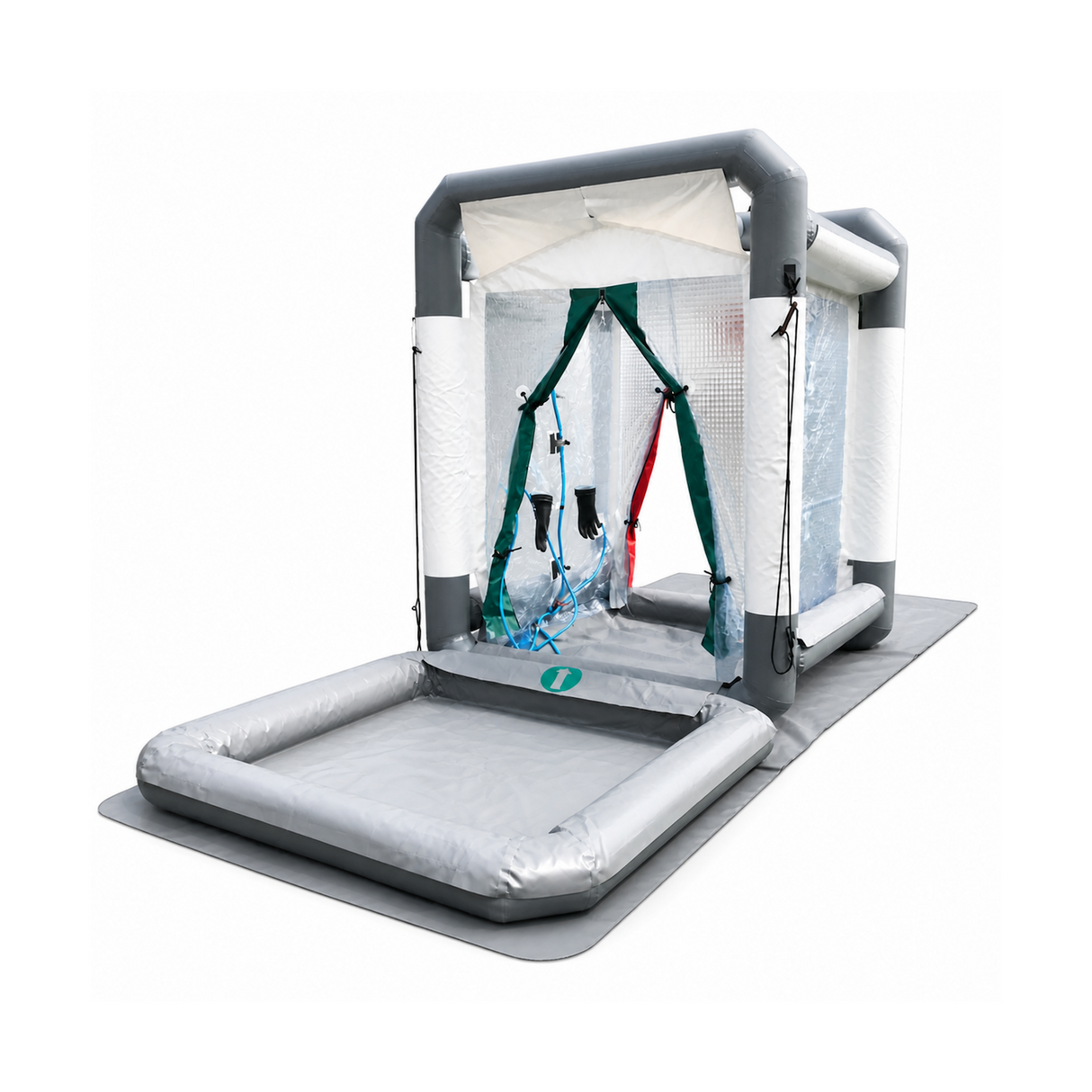

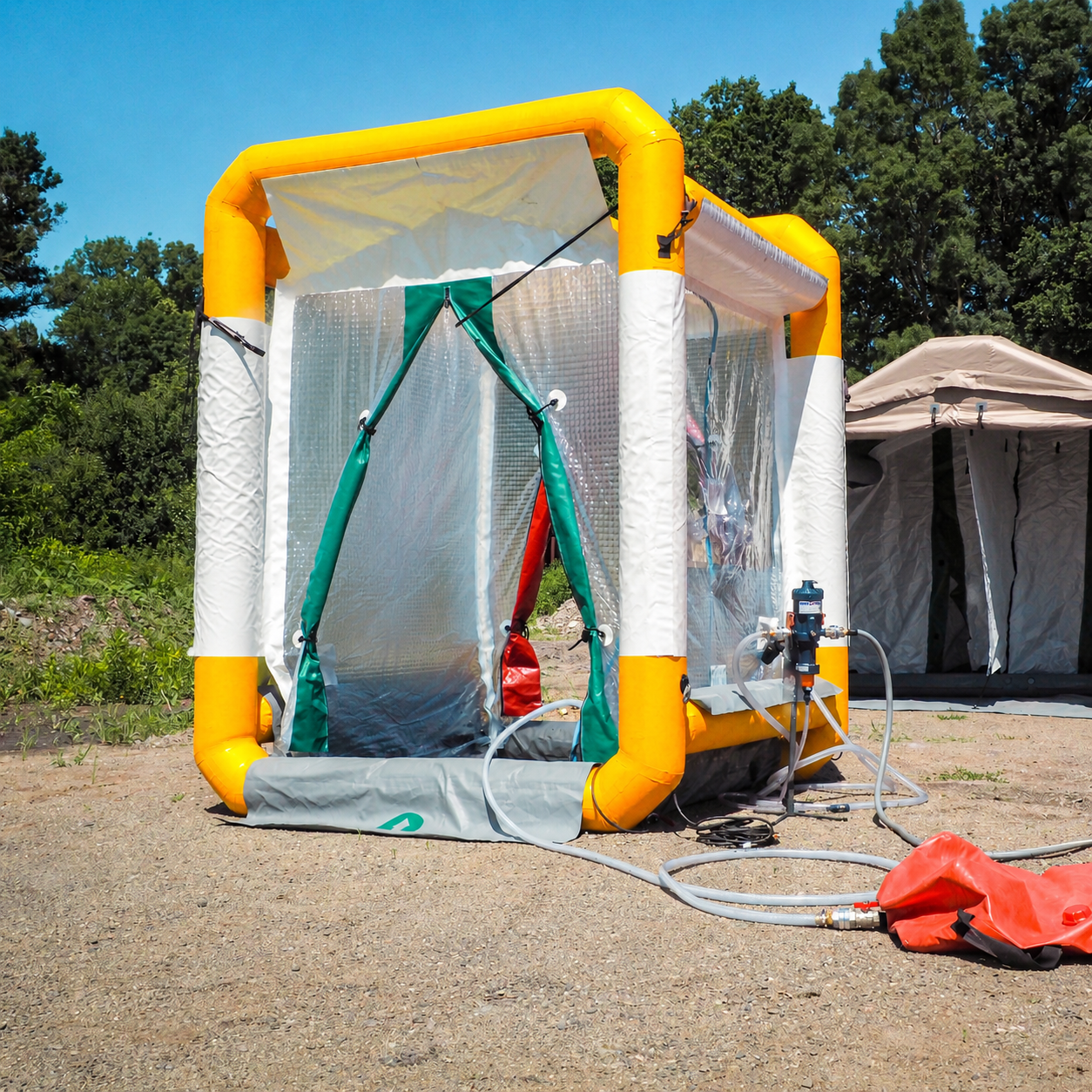

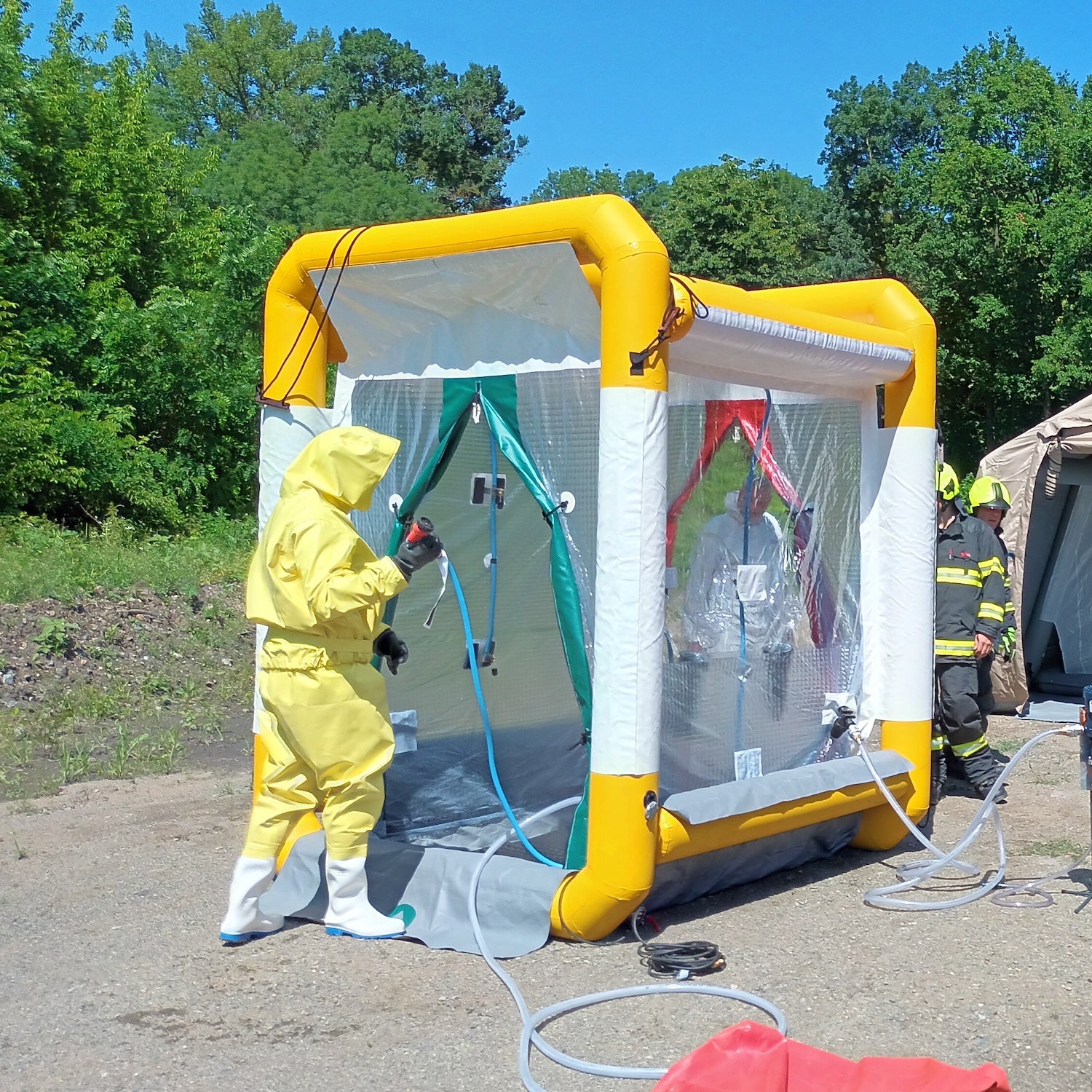

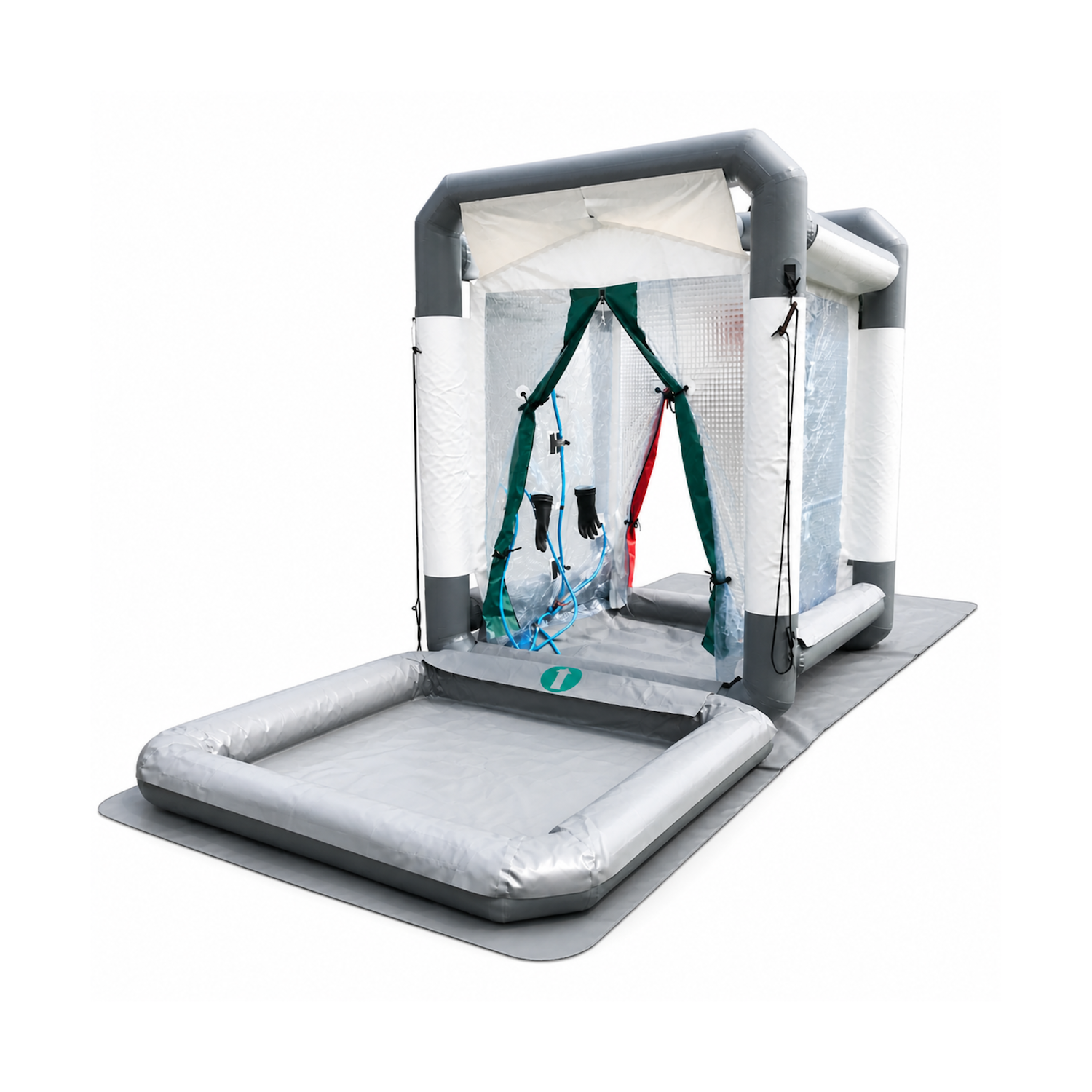

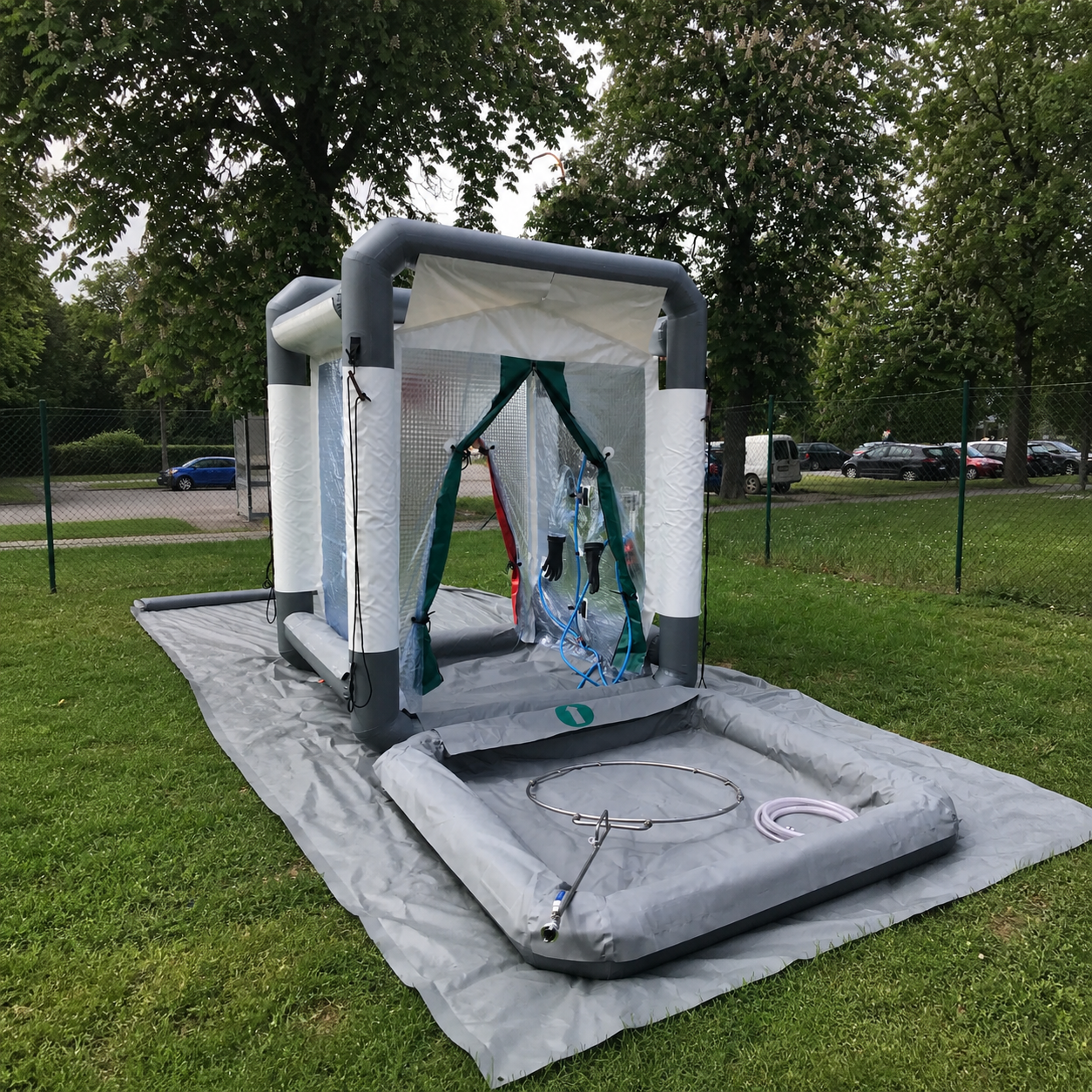

The mobile decontamination shower DECON-SHOWER from the CBRN.ZONE DCS series is designed for rescue operations, major incidents, and accident sites, enabling rapid cleaning and decontamination of people and materials. The single-chamber, inflatable structure with integrated shower cabin and collection tray is ready for use within minutes. It can be flexibly set up using compressed air, an electric blower, or a hand pump. An overpressure valve ensures safe operation. Water supply is via a D25 quick coupling.

The collection tray has two opposite drains for controlled discharge of contaminated liquids. A green-marked entrance (contaminated) and a red-marked exit (decontaminated) support safe procedures. Optionally, a viewing window with integrated gloves and cleaning equipment can be integrated. The system is robust, easy to operate, and designed for a long service life with minimal maintenance.

Operational Use

Civilian and military use.

Description

  • Inflatable single-chamber structure
  • Fast setup with air compressor, compressed air, or hand pump
  • One inflation/deflation valve and one pressure relief valve
  • Decontamination system with fixed mist nozzles
  • 5 - 14 nozzles depending on the model
  • Nozzles optionally plastic or steel
  • Includes carrying bag, anchoring, and repair kit

Type | Internal size | Dimensions | Weight

DCS-04 P/S | 2.50 m2 | 2.11 x 2.11 x 2.73 m | 49/51 kg
DCS-05 S | 3.50 m2 | 2.90 x 1.90 x 2.40 m | 64 kg
DCS-06 P/S | 4.00 m2 | 2.50 x 2.50 x 2.70 m | 60/62 kg
DCS-07 P/S | 6.00 m2 | 2.50 x 3.50 x 2.80 m | 63/73 kg
DCS-12 P | 9.00 m2 | 4.10 x 3.00 x 2.80 m | 105 kg

Technical data (depending on model):

Operating temperature (°C): -30 to +70
Operating pressure (bar): 0.19 - 0.21
Tube diameter: 230
Number of air chambers: 1
Number of nozzles: 5 - 14
Maximum water pressure (bar): 6

Request price and delivery time
