DECON-CONTAINER PDU

Preis auf Anfrage

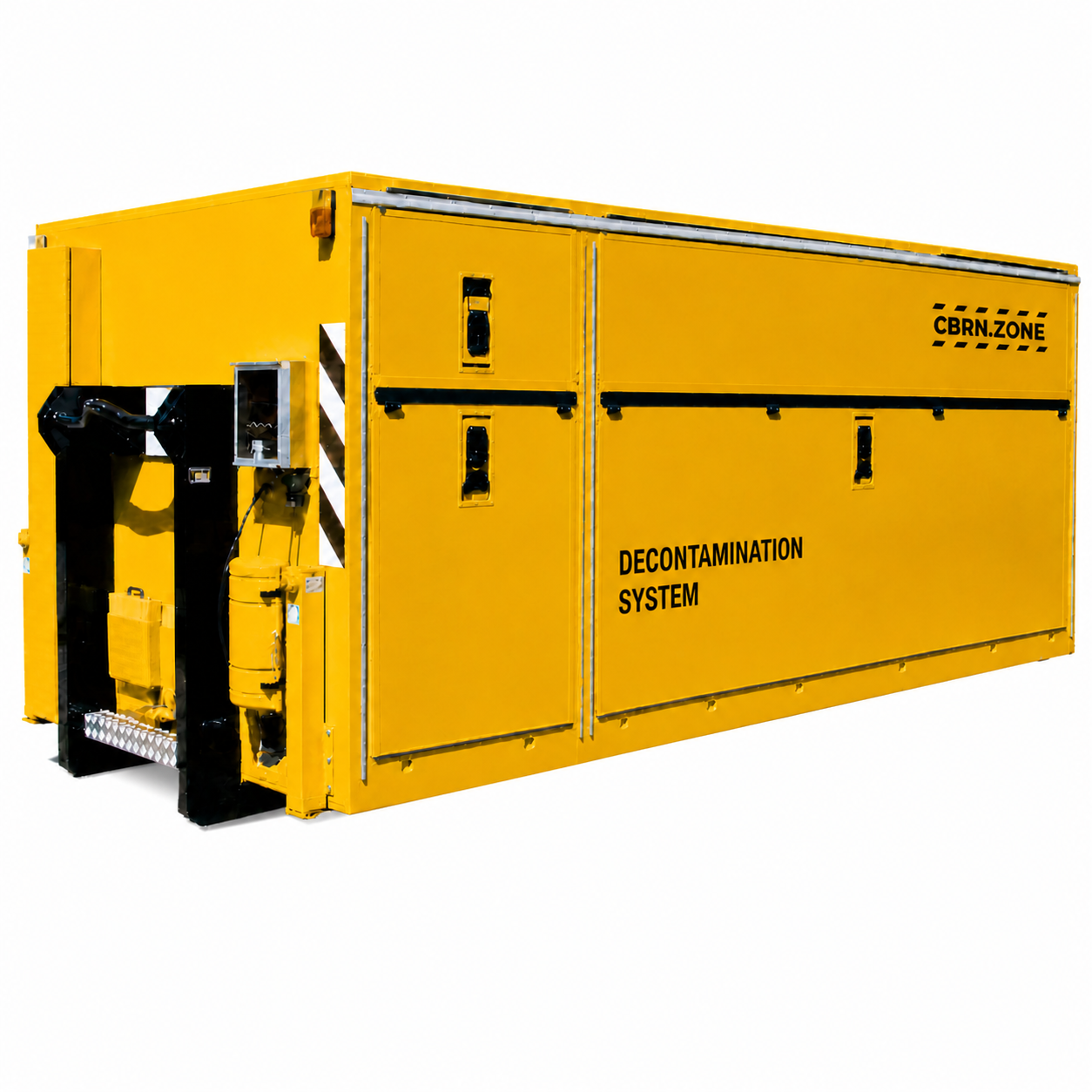

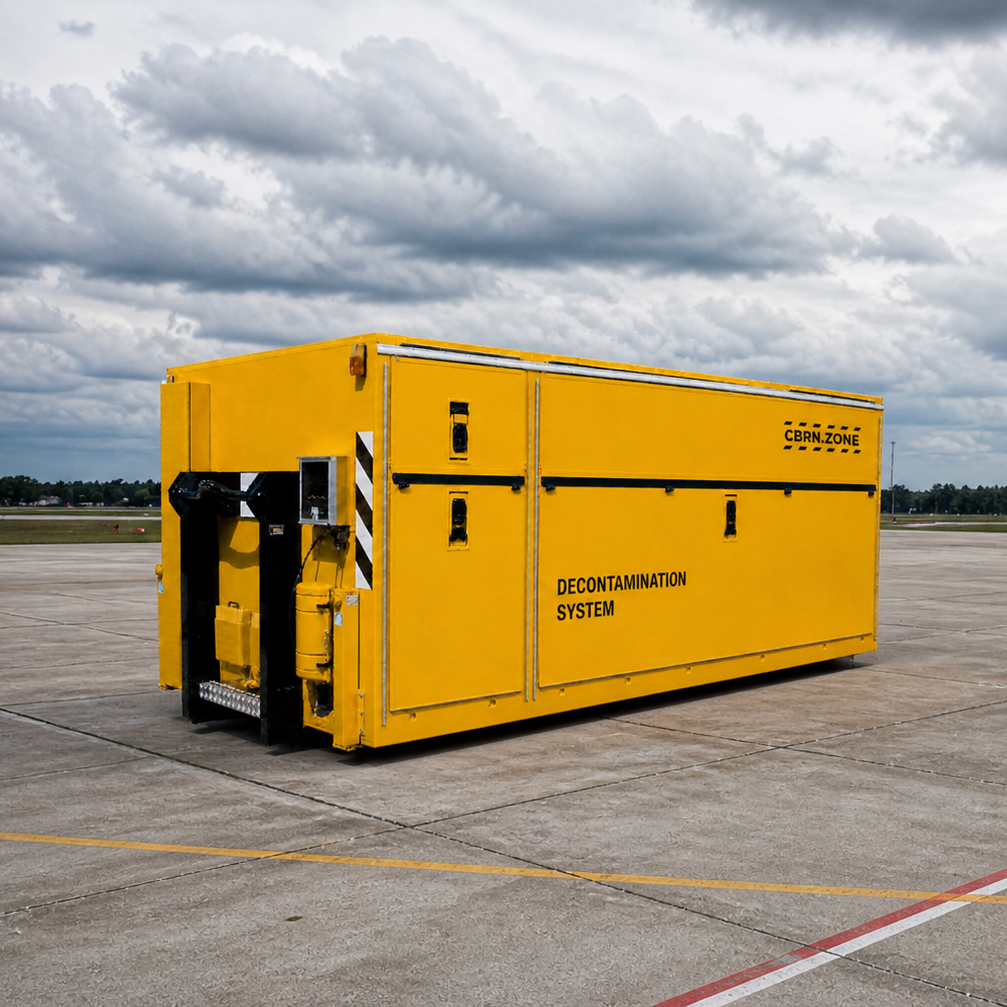

The DECON-CONTAINER PDU 160 is a highly mobile, self-sufficient system for the efficient decontamination of persons under CBRN conditions. The system combines a 20-foot ISO container with modular tent components and allows for a clear separation of contaminated and clean areas along a structured process flow (registration – undressing – decontamination – re-dressing). The parallel operation of several decontamination corridors ensures a high throughput of people while maintaining maximum process safety.

The unit is designed for use in military, civil, and industrial scenarios and is characterized by its robust construction, high environmental resistance, and complete operational self-sufficiency. Integrated systems for power supply, water treatment, air conditioning, and chemical dosing enable independent operation. Setup is completed within a short time by trained personnel, making the system ideal for both rapid deployment situations and large-scale damage events.

Area of application

Civilian and military sectors.

System & Performance

  • Capacity: up to approx. 160 people (depending on the degree of contamination)
  • Setup time: < 60 minutes with 2–4 people
  • Decontamination lines: 4 parallel lines
  • Areas of application: Military, civil protection, industry, civil disaster response

Container

  • Base: 20 ft ISO Container (Type 1C)
  • Dimensions: approx. 6,058 × 2,438 × 2,400 mm
  • Internal usable area: approx. 13 m²
  • Weight: approx. 2,800 kg (empty)
  • Lifespan: ≥ 15 years
  • Transport: road, rail, sea, air (incl. A400M)

Climate & Energy

  • HVAC performance:
    • Cooling: 7.6 kW
    • Heating: 7.2 kW
  • Air flow: 2,500 m³/h
  • Generator: 35 kVA diesel generator
  • Operating temperature: -20 °C to +55 °C

Water & Decontamination Technology

  • Hot water system: up to 95 °C, approx. 160 kW output
  • High-pressure cleaner: up to 160 bar
  • Dosing system: up to 750 L/h
  • Wastewater: integrated collection system + external connection
  • Water tanks: 2 × 5,000 L (foldable)

Tents & Infrastructure

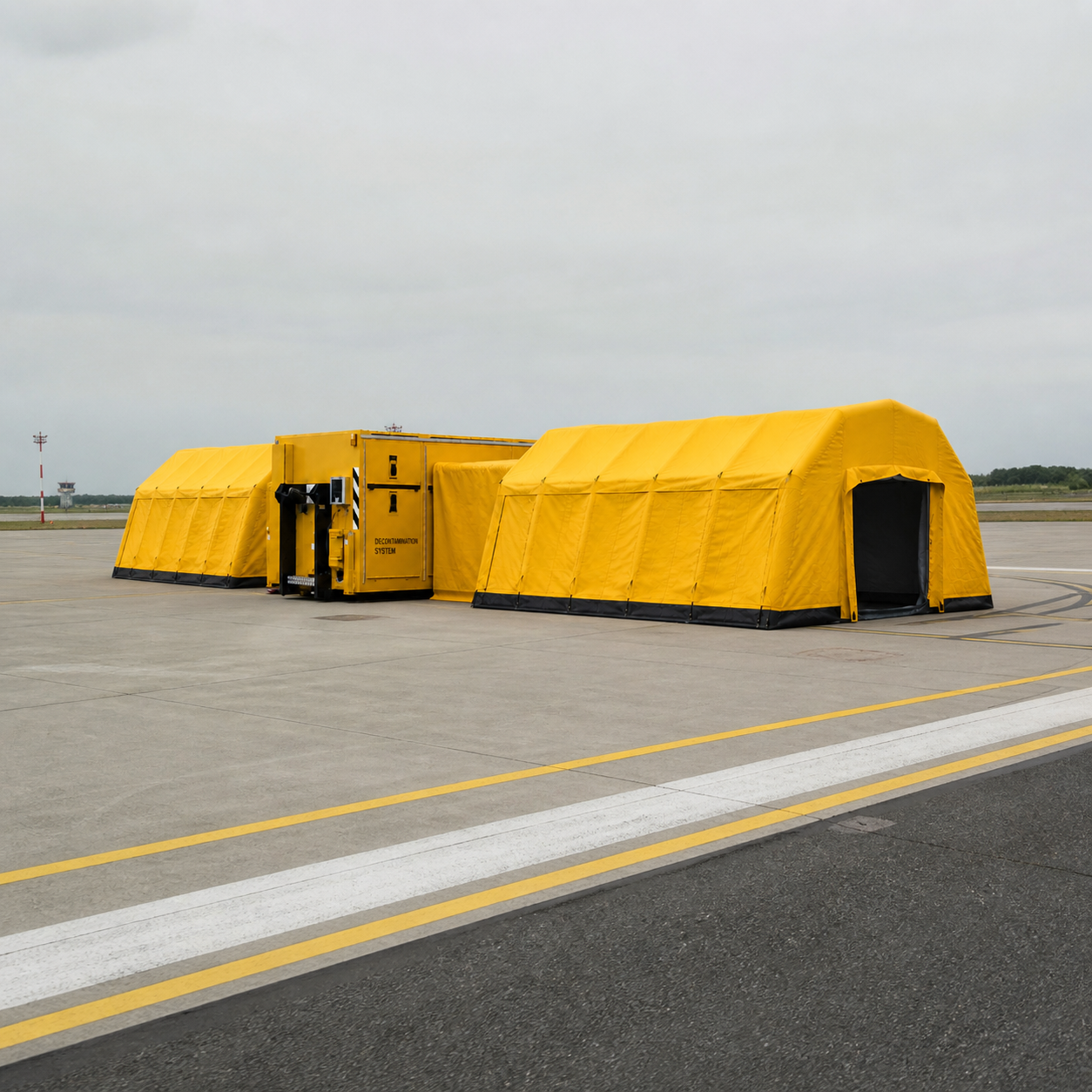

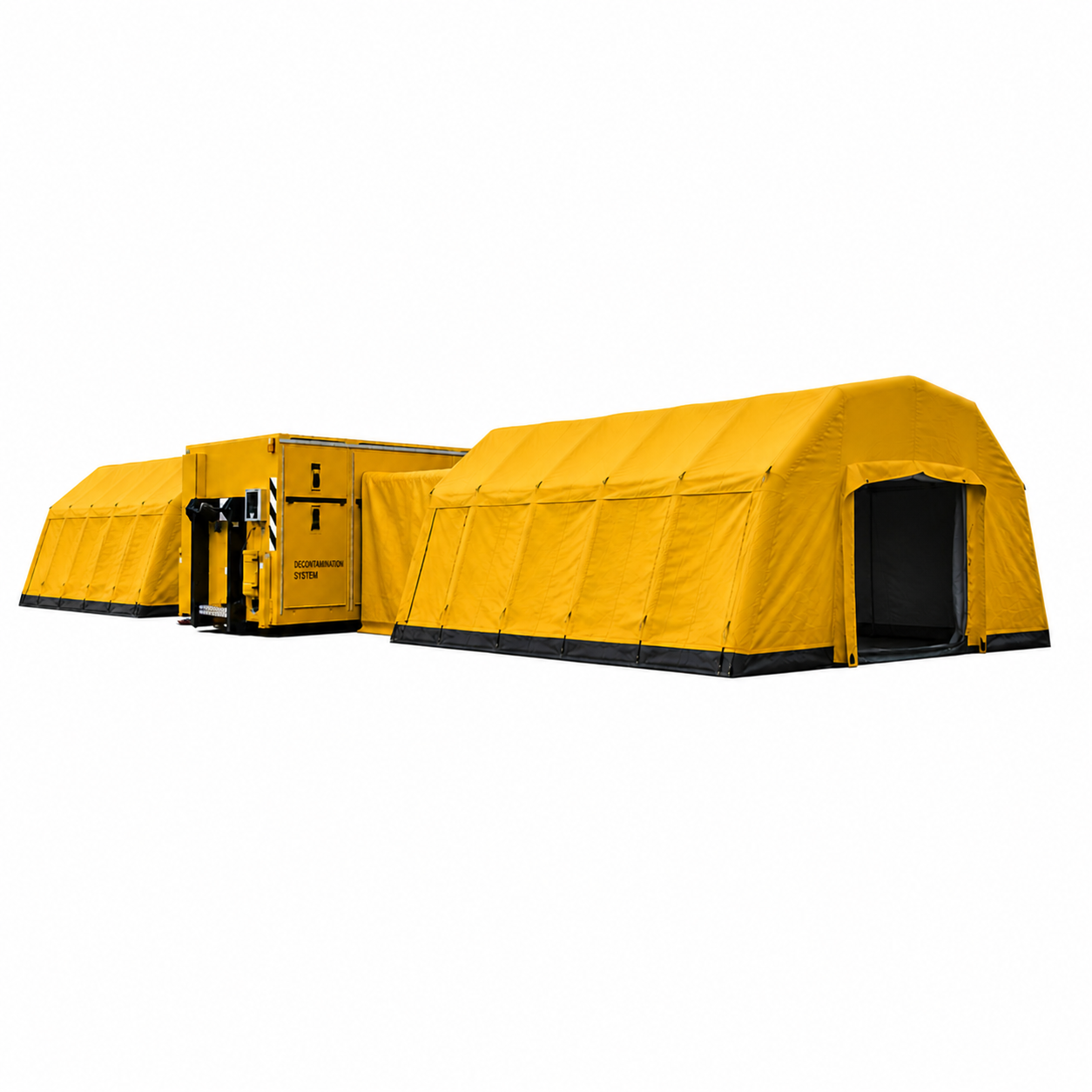

  • Inflatable tents (entry/exit): approx. 42 m² area
  • Material: PVC-coated polyester, flame retardant
  • Integration: connecting corridor to the container, complete process chain

Special Features

  • Clear separation of Hot / Warm / Cold Zone
  • Completely self-sufficient system (power, water, climate)
  • Scalable and modularly expandable
  • Military standards and high environmental resistance
  • Suitable for mass casualty incidents (MCI)
