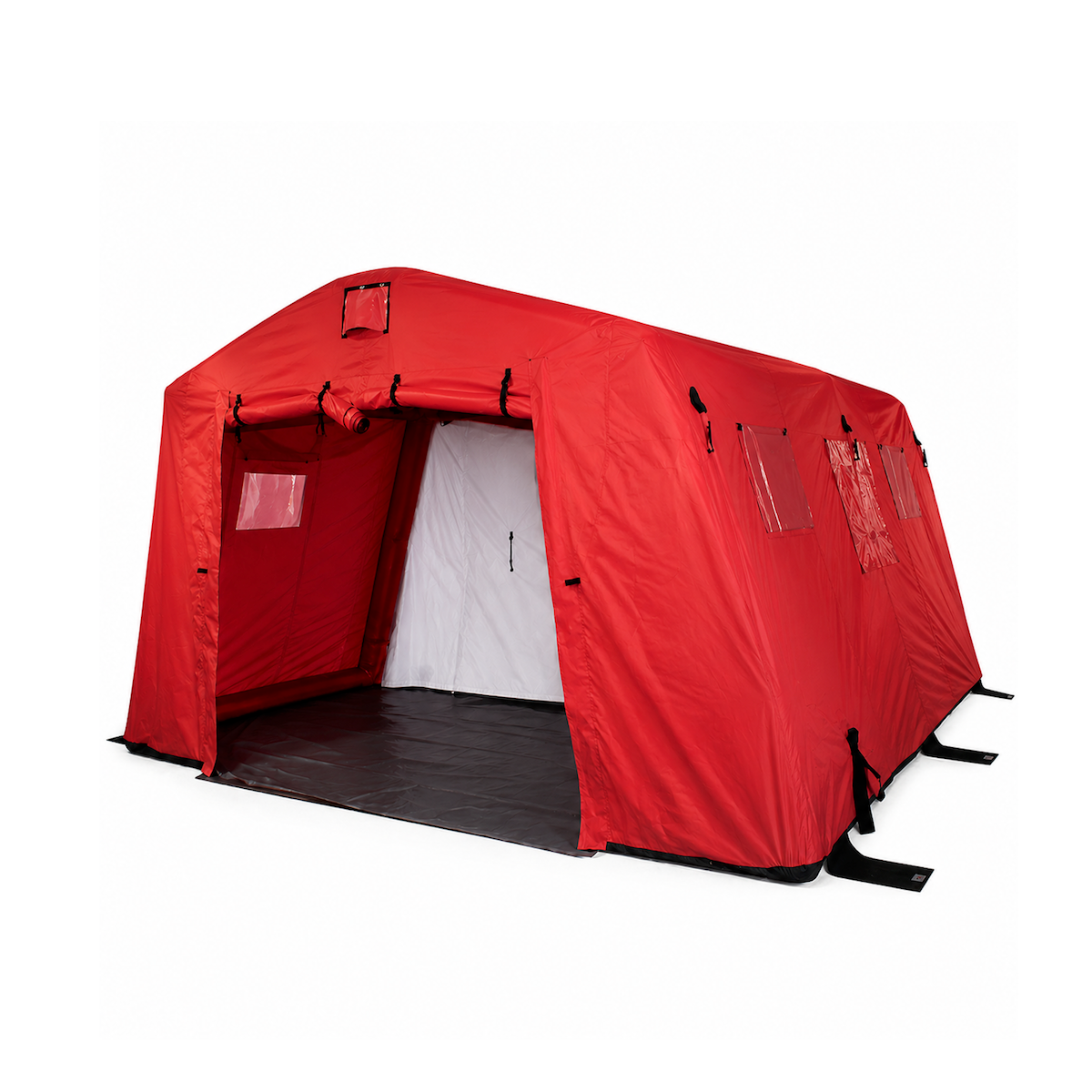

RESCUE Series

RESCUE SERIES

The RESCUE Series is a mobile, inflatable, and particularly lightweight tent system with a welded 1-chamber tube construction, specially developed for rapid rescue operations. Thanks to its compact packing dimensions and low weight, the system can be easily carried in almost any emergency vehicle.

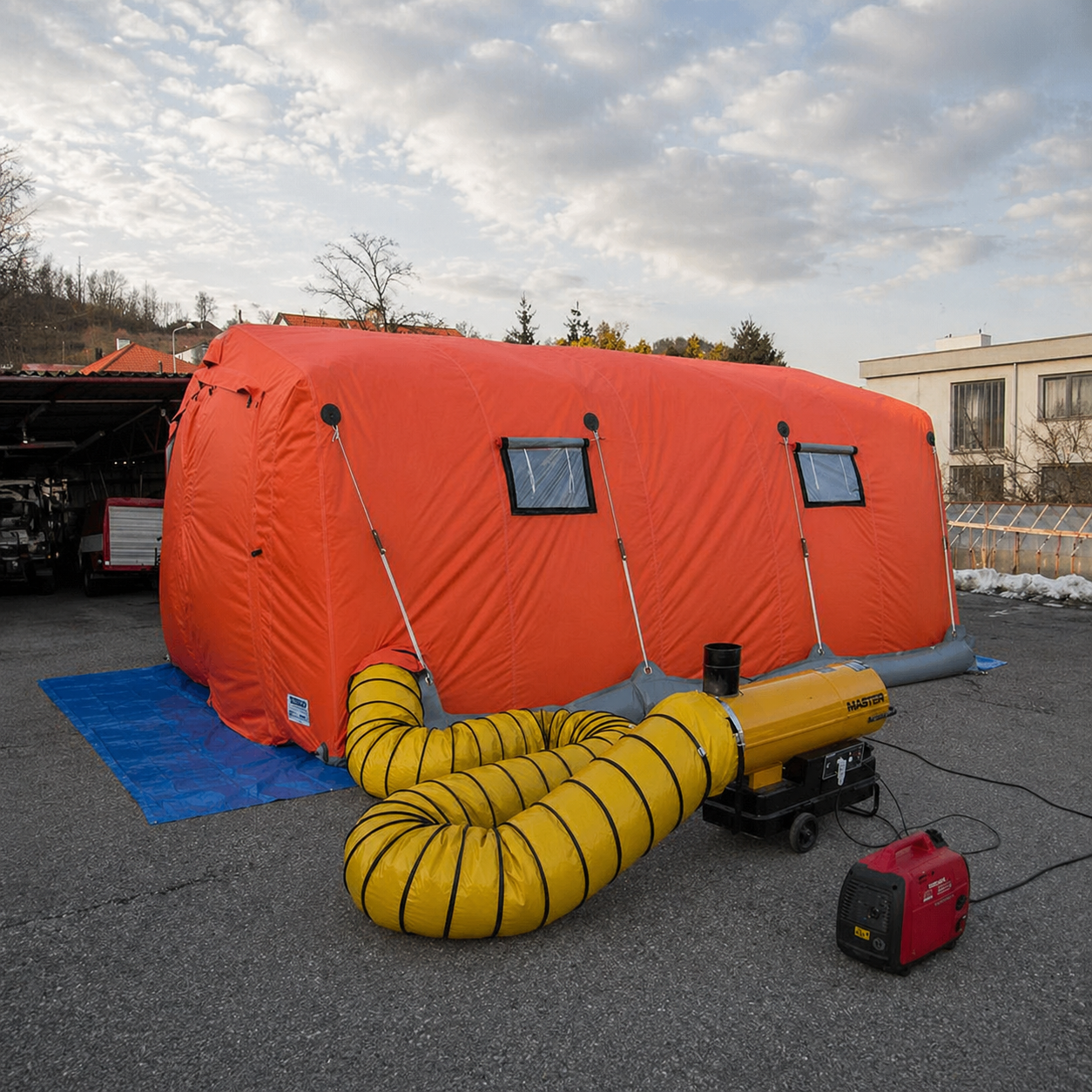

Assembly is quick and flexible – either with a hand pump, electric blower, or via a compressed air cylinder (e.g., 7 L at 300 bar).

Operational Use

Optimal for fast, time-limited operations by first responder teams and other rescue organizations.

Type | Internal size | Dimensions | Weight

RSC-16 | 16 m2 | 4.00 x 4.20 x 2.75 m | 58 kg
RSC-25 | 24 m2 | 5.00 x 5.20 x 2.80 m | 82 kg
RSC-40 | 37 m2 | 5.20 x 7.79 x 2.85 m | 115 kg

Features:

• Inflatable 1-chamber construction
• Easy handling
• Rapid installation and commissioning
• Easy to transport and store


Technical data:

Entrance (W x H): 3.00 x 2.20 m
Operating temperature (°C): -30 to +70
Operating pressure (bar): 0.19 - 0.21
Tube diameter: 210 mm
Number of air chambers: 1
Max. number of windows: 4-8
Ventilation nets: 0
Closable passages 150 mm (cables, hoses): 1-2
Closable passages 350 mm (heating): 0
Possible number of beds: 5 - 14
