BIO-BAG

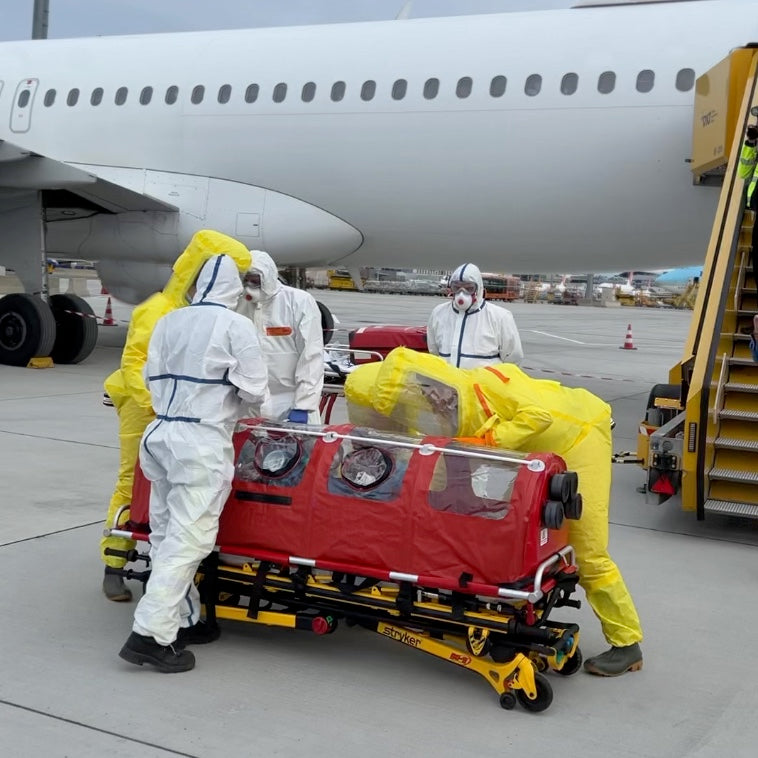

The BIO-BAG is a device for transporting highly infectious patients. Persons with dangerous, contagious diseases can be transported safely in this way.

In negative pressure mode, air is sucked from inside the BIO-BAG and released into the environment as filtered air (for highly infectious patients). In positive pressure mode, filtered air is blown from the environment into the BIO-BAG, protecting the patient from external influences (e.g., for burn patients).

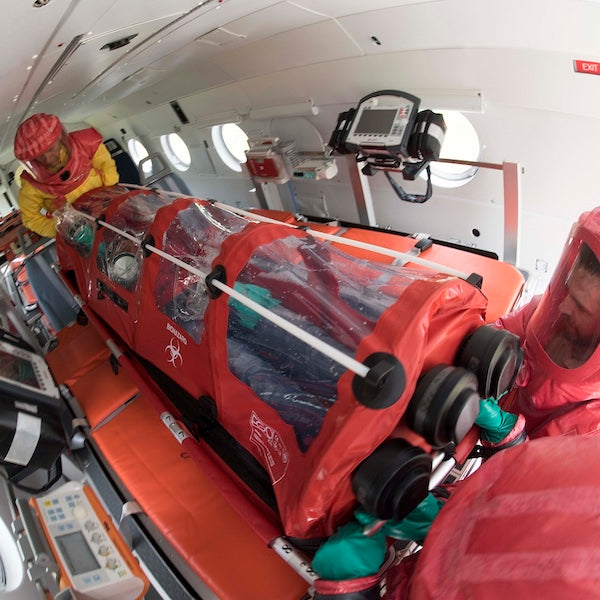

NEW: The BIO-BAG is also available in the AERO version, which is approved for air transport.

Description

• Large viewing windows for easy patient monitoring
• 3 pairs of arm sleeves with interchangeable gloves for performing basic patient interventions during transport
• Reliable patient fixation system

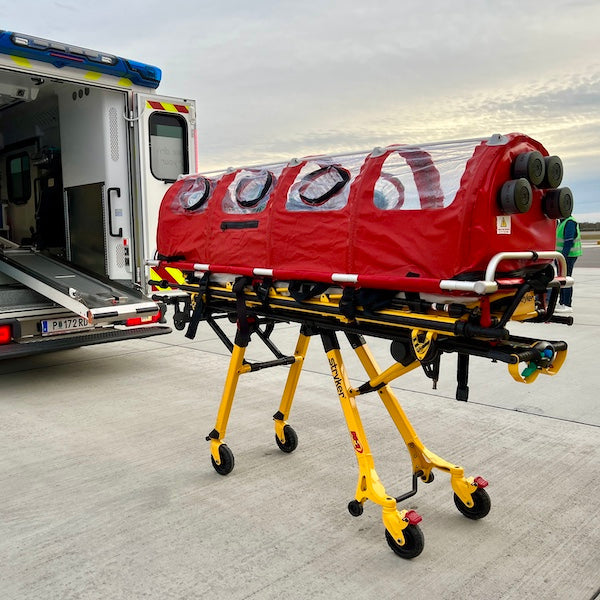

• Integrated carrying system in the form of a collapsible aluminum frame with attachment options in the transport vehicle
• Large entry ports for respiratory support devices, IV lines, ECG, and monitoring
• CleanAIR Chemical 2F filtered ventilation unit with 4 stages and color monitor
• 1 battery with charge level indicator (operating time 5h+)
• Underlay for greater patient comfort
• Easy maintenance, easy decontamination
• Hermetic zipper

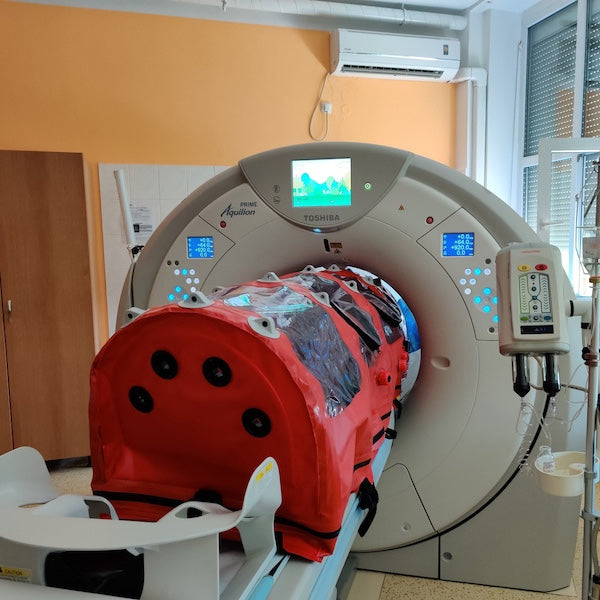

• Suitable for use in CT and X-ray
• Compactly foldable

Certification

EN 143/A1:2006, EN 12941:1998/A2:2008, EN 12942:1998/A2:2008

Technical data

Dimensions (LxWxH): 2,030 x 640 x 560 mm
Folded in backpack (LxWxH): 700 x 280 x 980 mm
Weight without / with backpack: 18.5 kg / 23 kg
Load capacity: 150 kg

Certification

Medical device
